Fume Hoods

A Fume Hood or Fume Cupboard is a piece of laboratory equipment design to limit exposure to dangerous fumes. The air inside the fume hood is vented to the outside by air blower..

Made of Mild Steel duly powder coated.
15/5 Amp Switches and Socket.
High Speed Centrifugal Blowers

Product Details

“servellbio” The work surface of granite is fitted with small wash basin & good quality tap. A gas cock is also fitted. Sliding sash made of toughened glass moves vertically up and down with concealed counter balanced weights. Chamber is fitted with 36W polycarbonate fluorescent light assembly. Space underneath the work surface is provided with storage compartment. 15/5 Amp socket with switches is provided for light and exhaust system. Supplied with cord and plug to work on 220 volts 1/3 phase 50Hz A.C. Complete with motor blower for exhaust system and Duct to take out fumes..

Fume Hoods

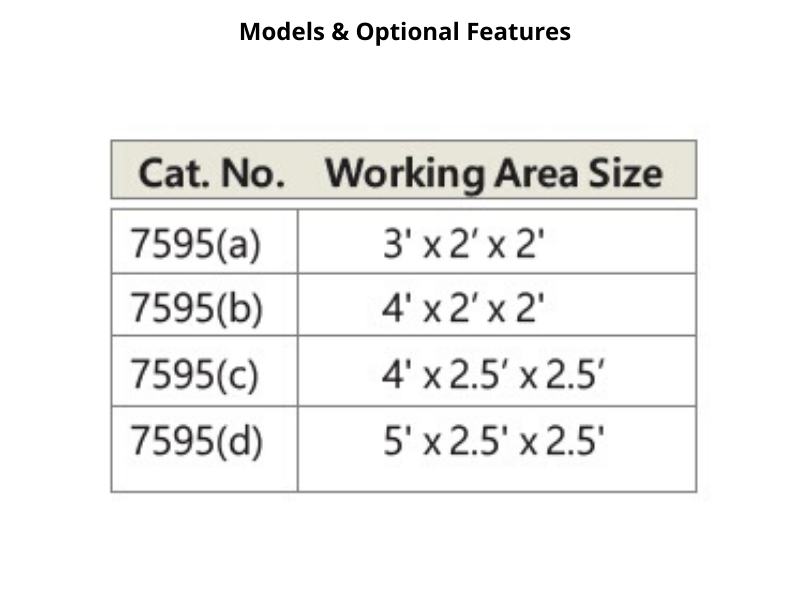

Models & Constructions details

Wooden Cabinet Model

structure made of Plyboard covered with melamine lamination from outside & epoxy painted from inside...

Stainless Steel Model

structure made of stainless steel - Frame of S.S. 304 grade from outside & 316 grade inside...

Construction

Servell-Bio A Fume Hood or Fume Cupboard is a piece of laboratory equipment design to limit exposure to dangerous fumes. The air inside the fume hood is vented to the outside by air blower. Superior in construction. The design based on independent rigid frame construction assures...
Rugged installation
Low vibration
Low installation.

SPECIFICATIONS

Made of Mild Steel duly powder coated..
Granite Working Platform..
High Speed Centrifugal Blowers..
Front Sash with counter weights..
Fluorescent illumination lights..
Provision for gas and air connection storage cupboard..
15/5 Amp Switches and Socket..

ORDER NOW

Technical Specifications

15/5 Amp socket with switches is provided for light and exhaust system. Supplied with cord and plug to work on 220 volts 1/3 phase 50Hz A.C. Complete with motor blower for exhaust system and Duct to take out fumes.
